Description
Product Overview

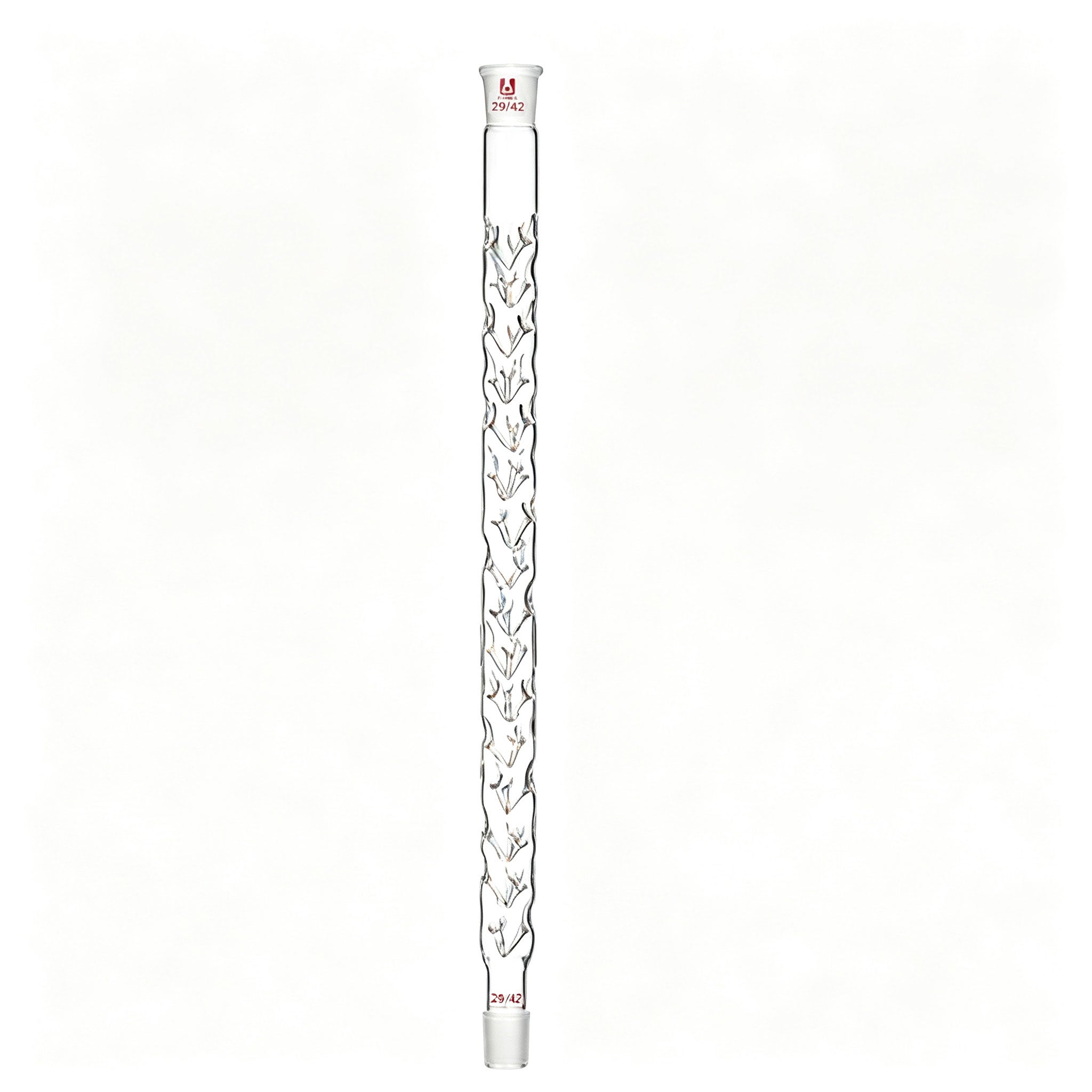

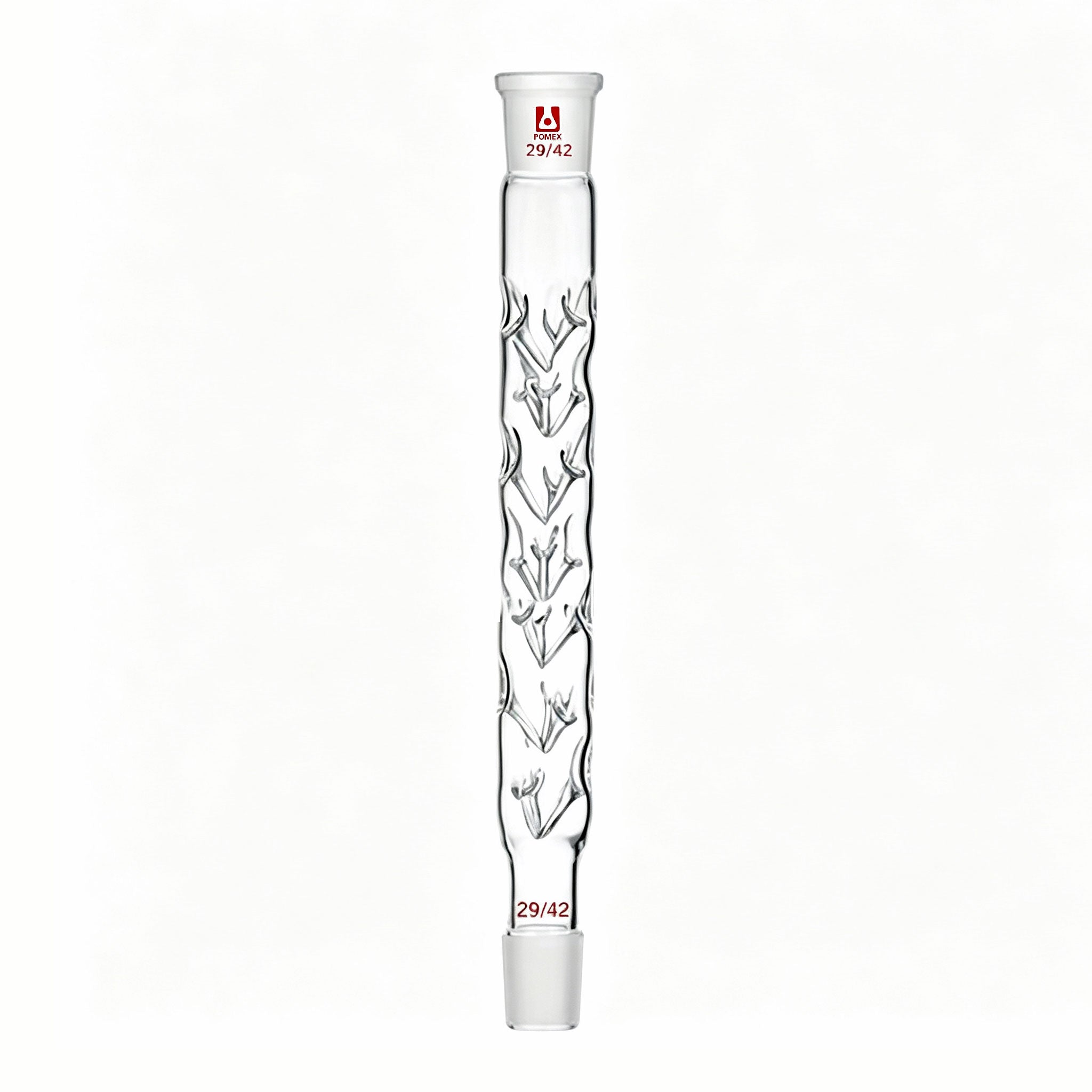

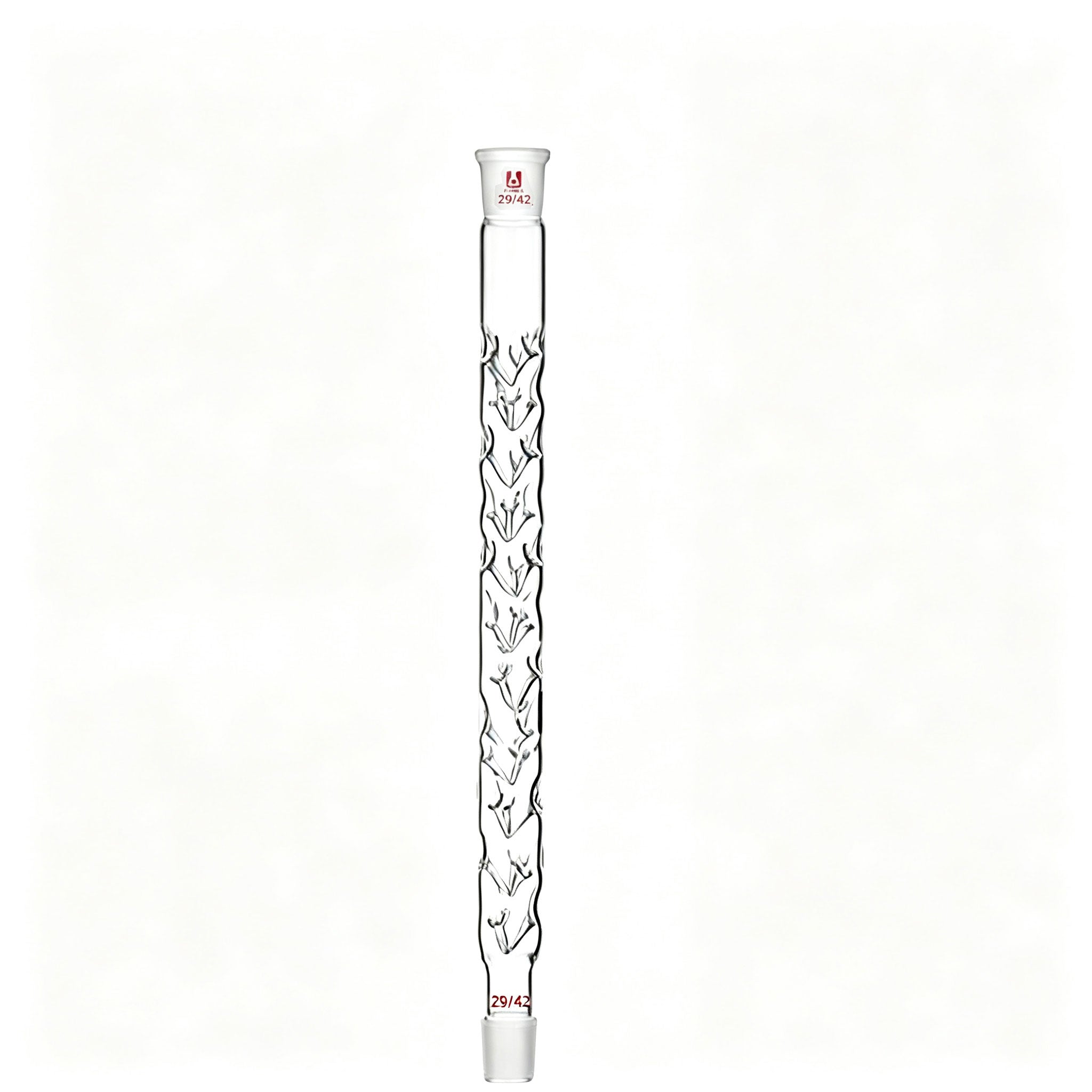

This Vigreux fractional distillation column is manufactured from high-quality borosilicate glass 3.3 for excellent chemical resistance, thermal shock resistance, and optical clarity. The column features a series of internal indentations (Vigreux points) that increase surface area and promote efficient fractional distillation by providing multiple theoretical plates. With 29/42 standard taper joints at both ends, it is compatible with a wide range of laboratory glassware, including flasks, condensers, distillation heads, and adapters. Ideal for precise separation and purification of liquid mixtures in research, industrial, and teaching laboratories.
Key Features
-
Laboratory-Grade Borosilicate Glass 3.3: High chemical durability and thermal stability for routine and demanding laboratory applications.
-
Vigreux Indentation Design: Internal points increase surface area for improved fractional distillation and separation efficiency.
-
29/42 Standard Taper Joints: Precision-ground conical joints at both ends ensure secure, leak-free connections with compatible glassware.
-
Efficient Fractional Distillation: Provides multiple theoretical plates for better separation of close-boiling liquid mixtures.
-
Excellent Thermal Shock Resistance: Withstands typical laboratory temperature changes without cracking.
-
Chemical Resistance: Resists most common acids, bases, solvents, and reagents under normal laboratory conditions.
-
Clear Borosilicate Construction: Allows easy visual monitoring of reflux and distillation progress.
-
Uniform Wall Thickness: Promotes even heating and reduces stress points for enhanced durability.
-
Reusable and Long-Lasting: Designed for repeated use with proper handling and care.
-
Versatile Applications: Ideal for fractional distillation, reflux, purification, synthesis, and general chemistry procedures.
Specifications
-
Product Type: Vigreux Distillation Column / Fractional Distillation Column
-
Material: Borosilicate Glass 3.3
-
Design: Internal Vigreux indentations
-
Joint Type: Standard taper conical ground glass joints
-
Joint Size: 29/42 (both ends)
-

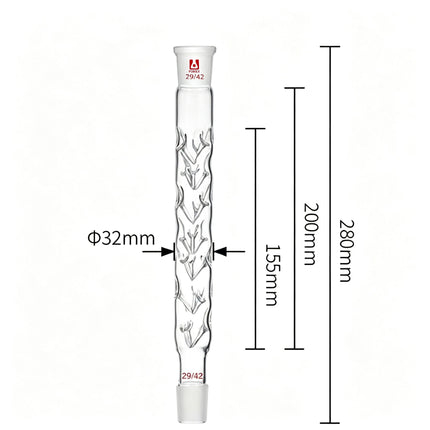

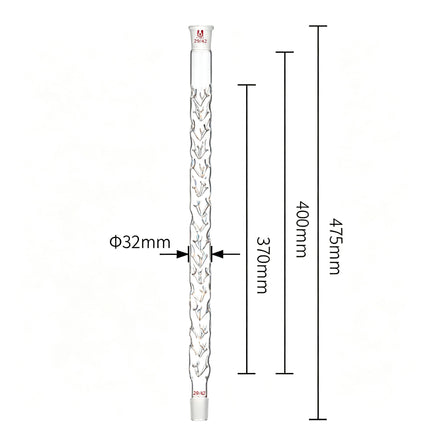

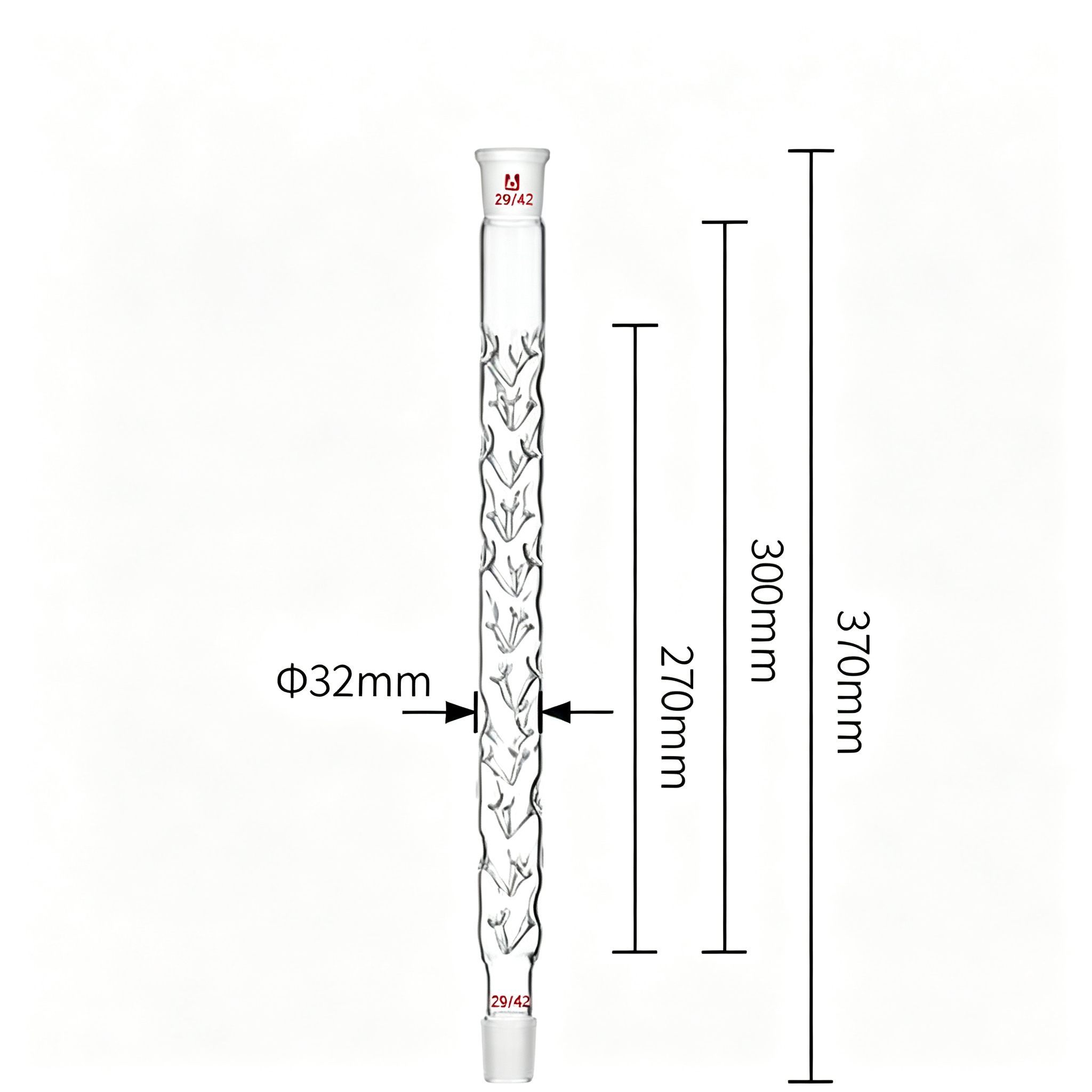

Length: Available in 100mm, 200mm, 250mm, 300mm, 400mm, 500mm and 600mm.
-
Color: Clear
-
Compatibility: 29/42 standard ground glass joints, flasks, condensers, distillation heads, adapters
-
Applications: Fractional distillation, reflux, purification, synthesis, chemistry education
-
Package Includes: Vigreux Distillation Column (selected length, 29/42 joints).
