Description

Product Description:

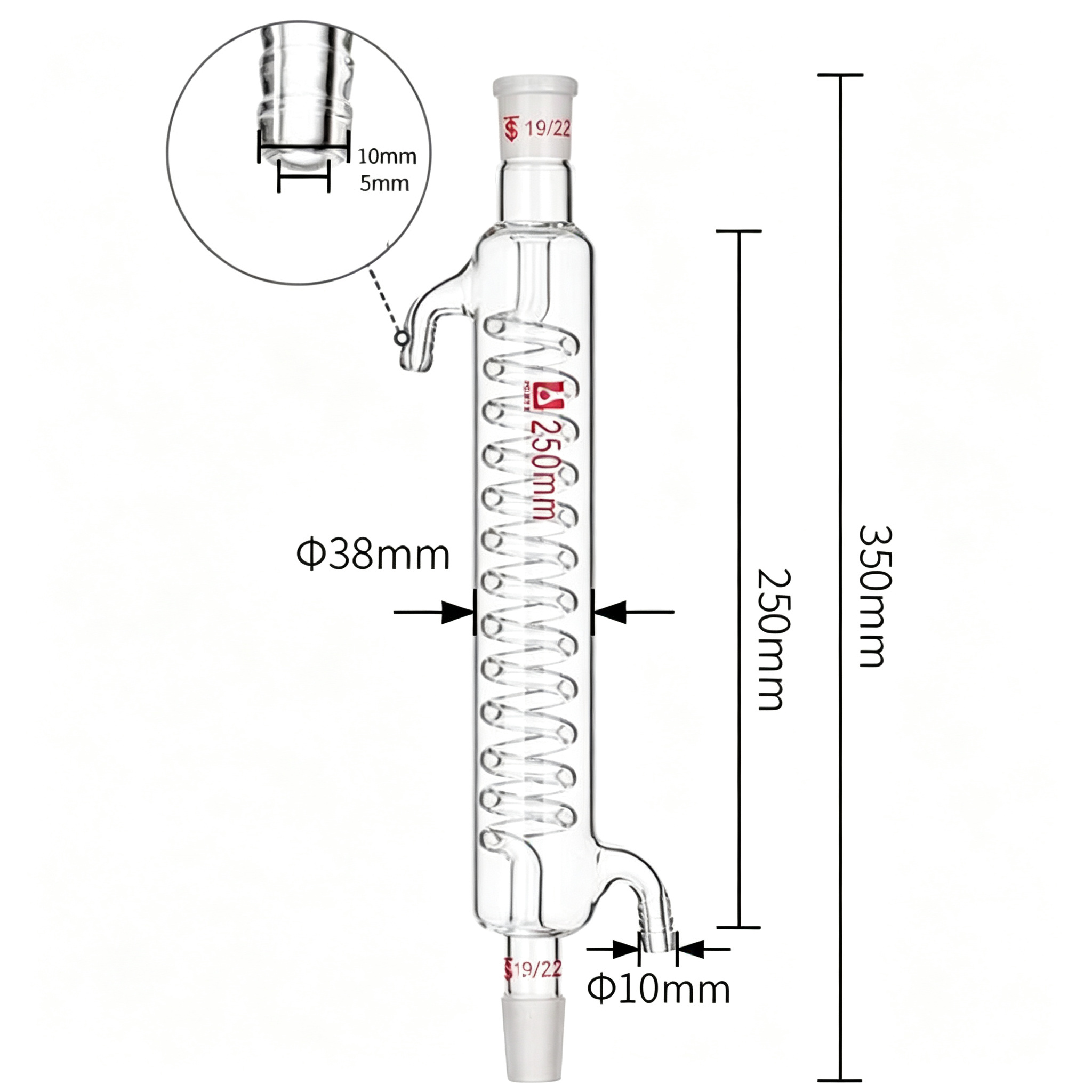

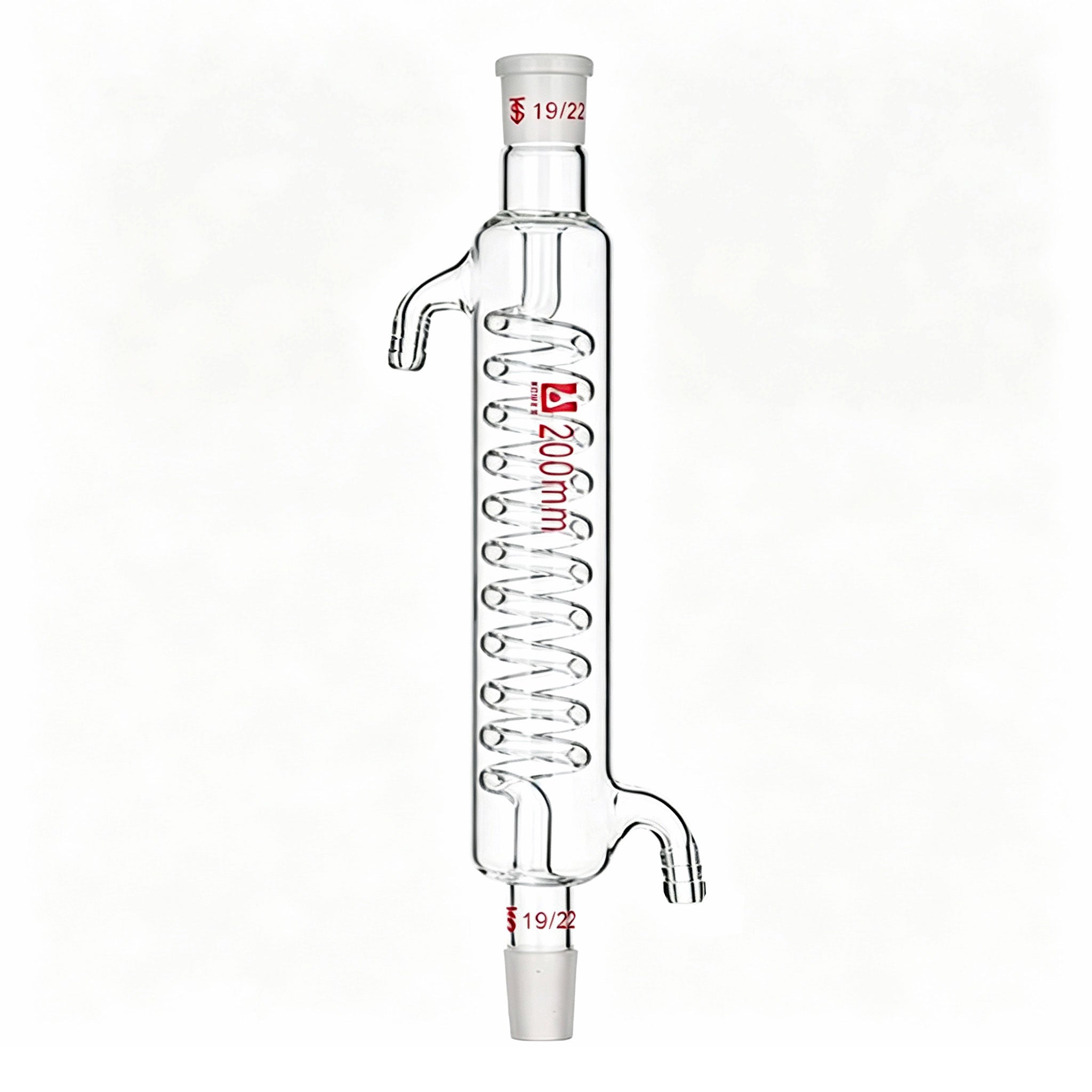

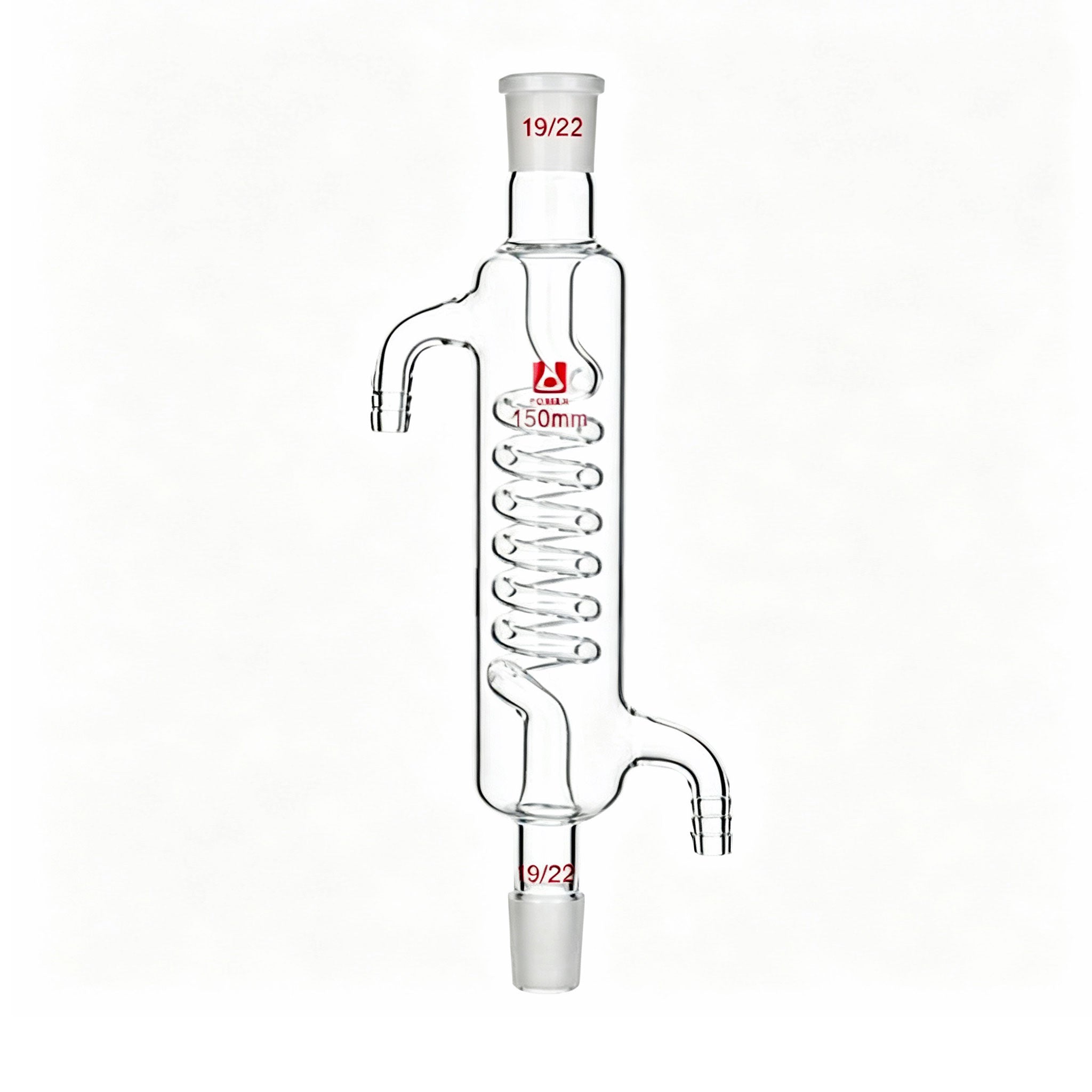

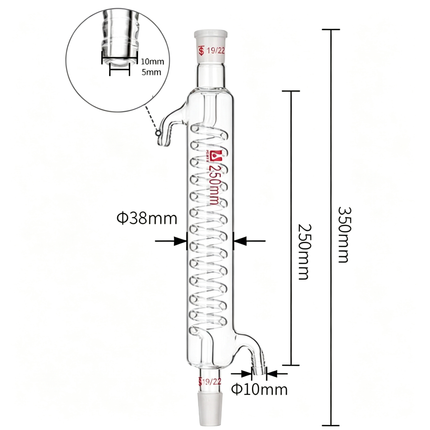

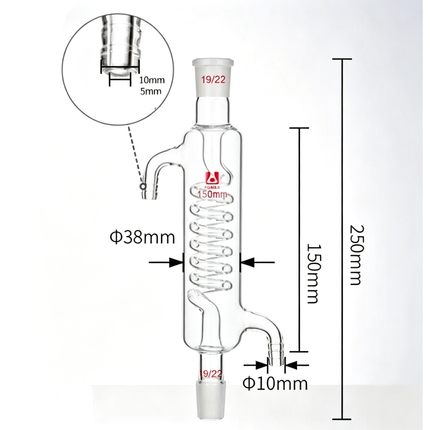

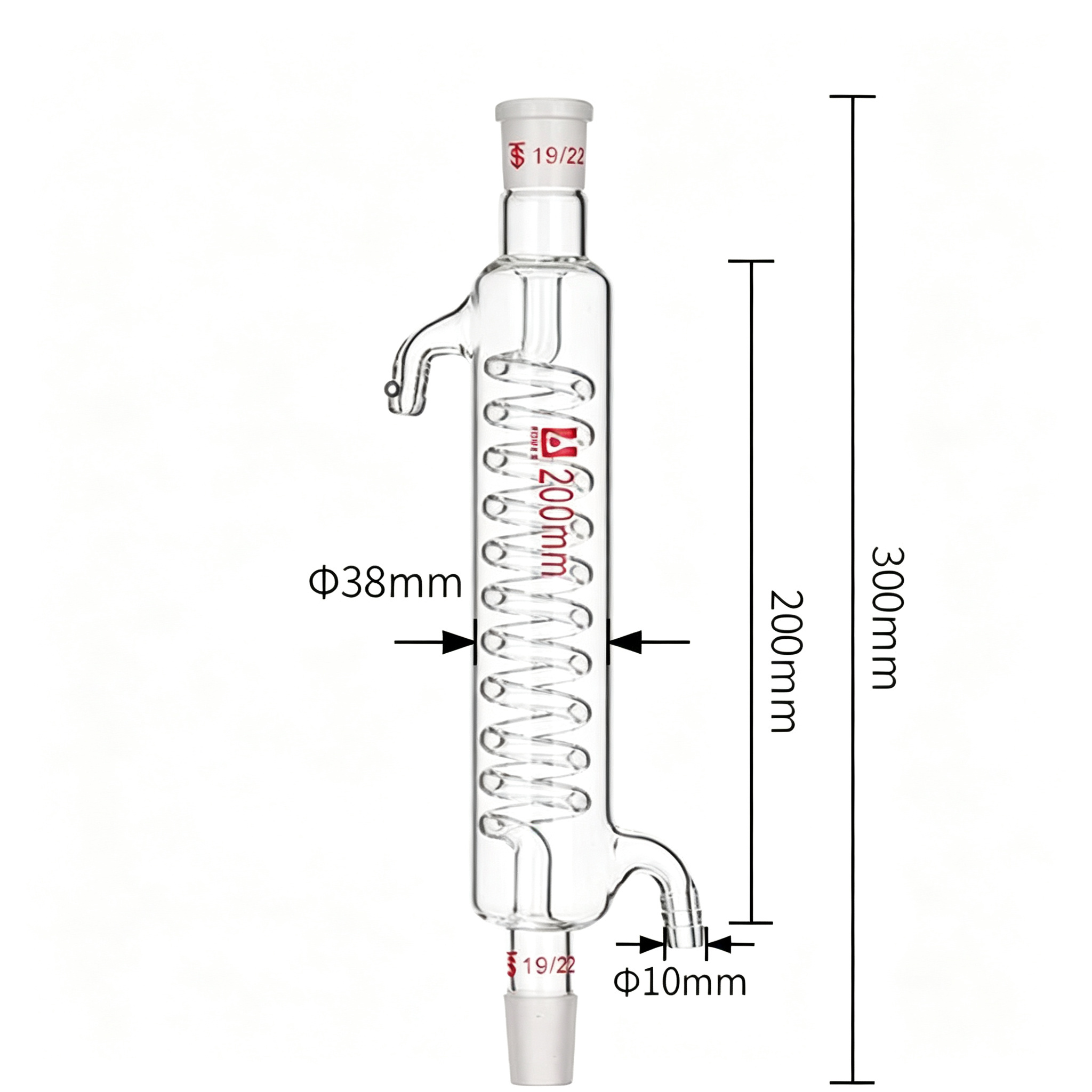

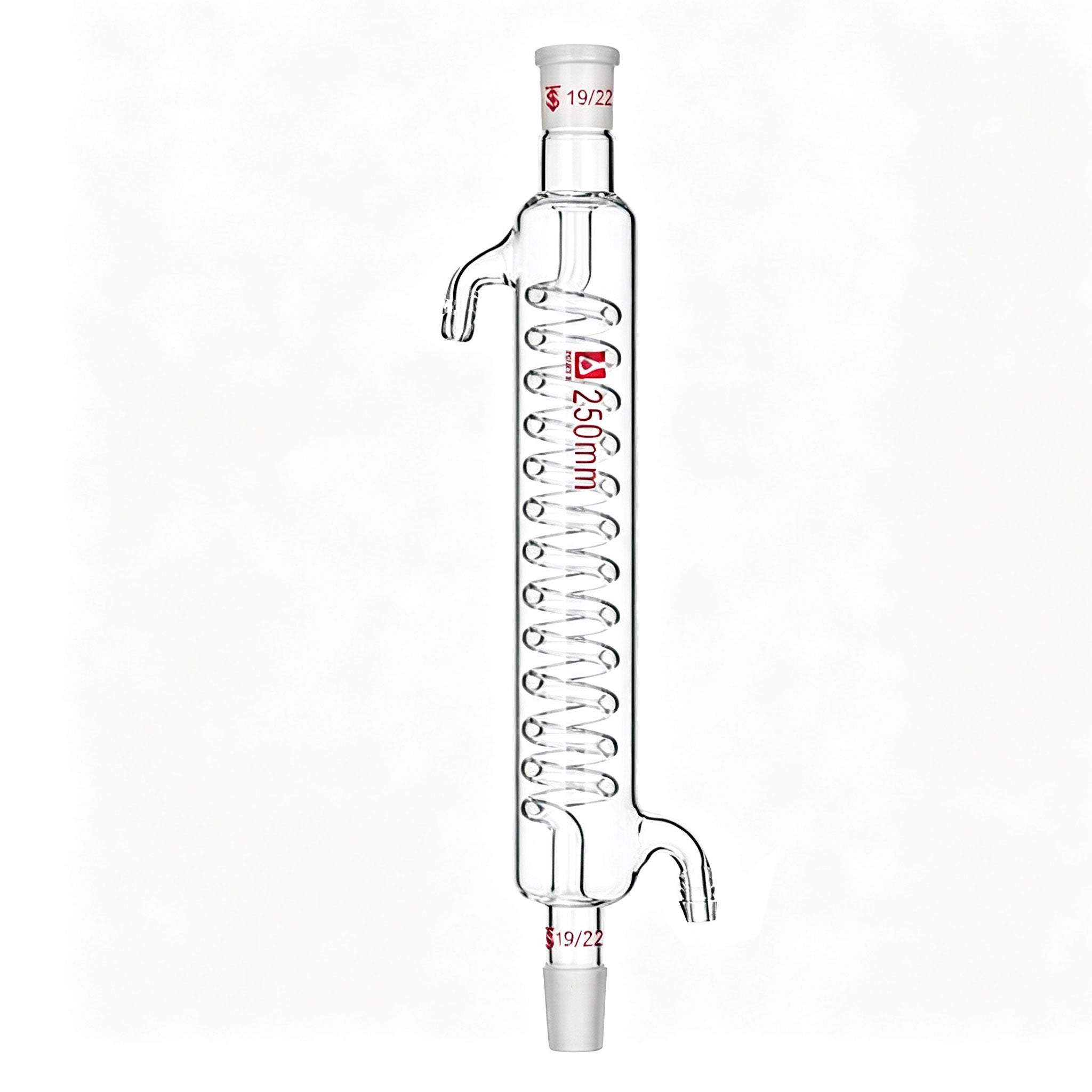

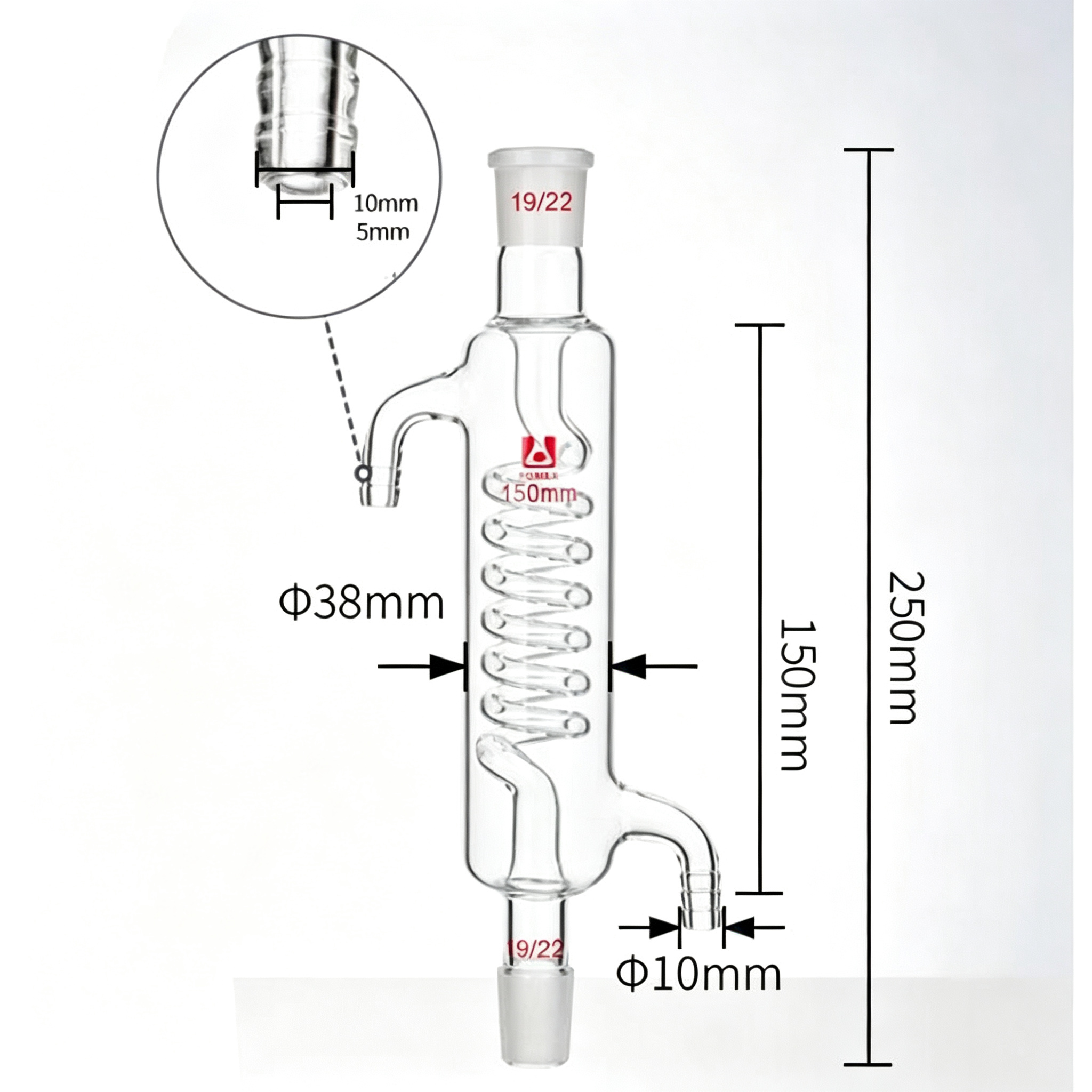

The Graham condenser (also known as a serpentine or spiral condenser) features a coiled inner tube enclosed in a straight outer water jacket. This spiral design significantly increases the cooling surface area, making it highly efficient for condensing vapors in distillation, reflux, and extraction setups. Made from high-quality borosilicate glass 3.3, it offers excellent chemical resistance, thermal shock resistance, and clear visibility. Available in spiral condensation lengths from 100mm to 600mm and with a standard conical joint (please specify size), it is ideal for research, industrial, and teaching laboratories.

Key Features:

• High-Quality Borosilicate Glass 3.3: Durable, chemically resistant, and suitable for repeated laboratory use.

• Efficient Graham Spiral Design: Coiled inner tube provides a large surface area for superior cooling and condensation.

• Serpentine/Spiral Condensation Path: Maximizes contact between vapor and cooling water for high efficiency.

• Multiple Spiral Lengths Available: Choose from 100mm, 200mm, 300mm, 400mm, 500mm, or 600mm.

• Standard Conical Joint: Compatible with 19/22 ground glass laboratory glassware

• Dual Hose Connectors: Convenient water inlet and outlet for easy cooling water connection.

• Excellent Thermal Shock Resistance: Suitable for typical distillation and reflux temperature changes.

• Clear Glass Construction: Allows easy observation of condensate flow and cooling performance.

• Chemical Resistant: Withstands most common laboratory chemicals, solvents, and reagents.

• Versatile Applications: Ideal for distillation, reflux, extraction, synthesis, and general chemistry setups.

• Reusable & Long-Lasting: Designed for professional lab use with proper handling.

• Professional Lab Quality: Suitable for research labs, industrial labs, and educational laboratories.

Specifications:

• Product Type: Graham Condenser / Serpentine Condenser / Spiral Condenser

• Material: Borosilicate Glass 3.3

• Joint Size: 19/22 conical joint

• Spiral Lengths Available: 100mm, 200mm, 300mm, 400mm, 500mm, 600mm

• Design: Coiled inner tube with straight outer water jacket

• Hose Connectors: 2 (water inlet / outlet)

• Color: Clear

• Compatibility: Standard ground glass joints

• Applications: Distillation, reflux, extraction, synthesis, chemistry education

• Package Includes: Graham Condenser

Specifications

• Title: Graham Condenser Serpentine Condenser Spiral Condenser Lab Borosilicate 3.3 Glass 19/22 Joint
• Material: Borosilicate Glass 3.3
• Grade: Class A
